CatMQv3.0.0
A high-performance and reliable persistent message queue designed for efficient inter-process communication, task queuing, load balancing, and data buffering over TCP/IP.
CatMQ is a high-performance and reliable persistent message queue designed for efficient inter-process communication, task queuing, load balancing, and data buffering.
Applications written in any language can publish and consume messages. .NET applications connect with the native TCP client, Python and JavaScript have client libraries, and Go, Java, shell scripts and everything else use the HTTP API directly, or have CatMQ push messages to them with webhooks. They all share the same queues, so a message published from one language can be consumed in another.
Testing Status
Another Message Queue?! Why?
CatMQ is not “fully featured”, as in it does not natively support clustering and it is not multi-protocol (no AMQP nor MQTT). Ok, then what’s the deal? Well, we needed a MQ that was slim, straight forward and free of fat-runtimes such as java or additional dependencies such as erlang. We went on an internet fishing expedition and came up empty.
So, we built one. Welcome to CatMQ: a reliable yet slim message queue.
Packages 📦
- Dedicated server install, with the web UI and the HTTP API: https://github.com/NTDLS/CatMQ/releases
- HTTP API for any language, described by an OpenAPI document: docs/api/catmq.openapi.yaml
- Python client, standard library only: clients/python
- JavaScript and TypeScript client, no dependencies: clients/javascript
- .NET client Nuget package: https://www.nuget.org/packages/NTDLS.CatMQ.Client
- .NET server Nuget package, for running the server in-process: https://www.nuget.org/packages/NTDLS.CatMQ.Server
See also:

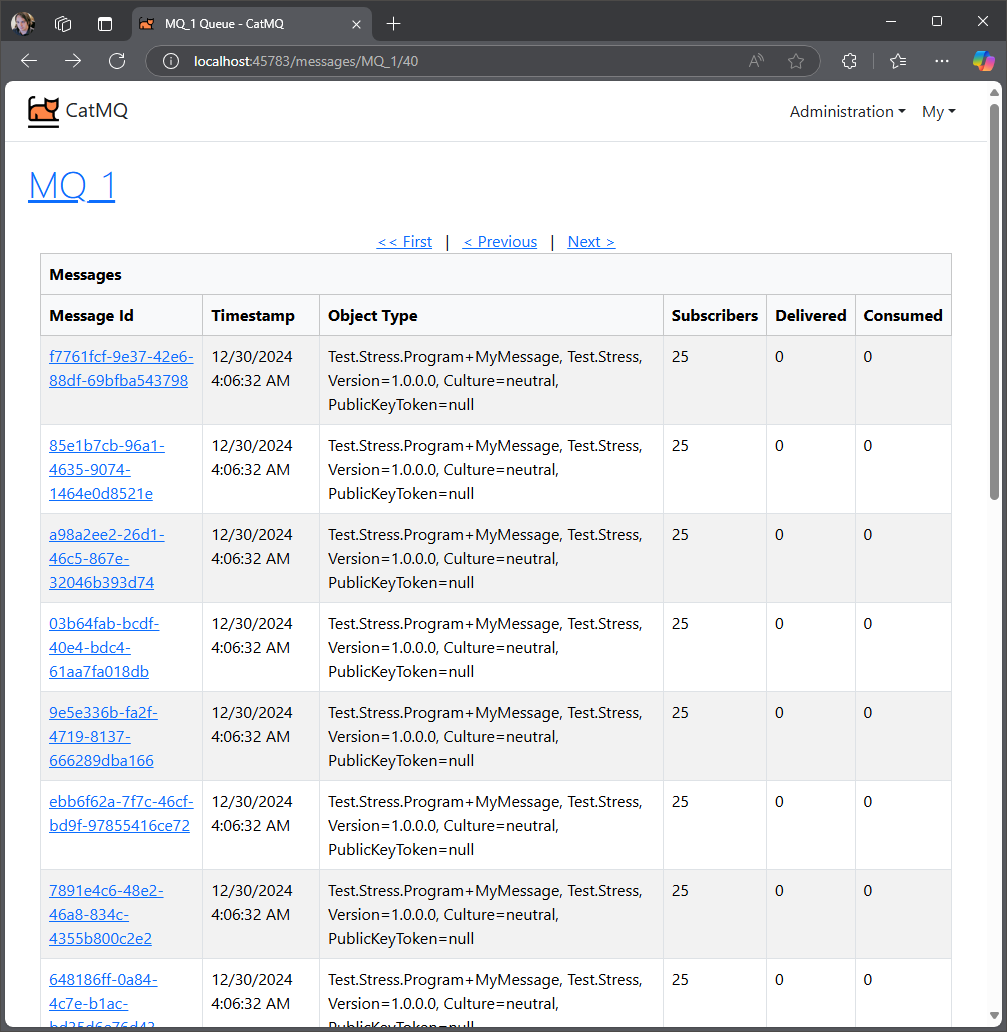

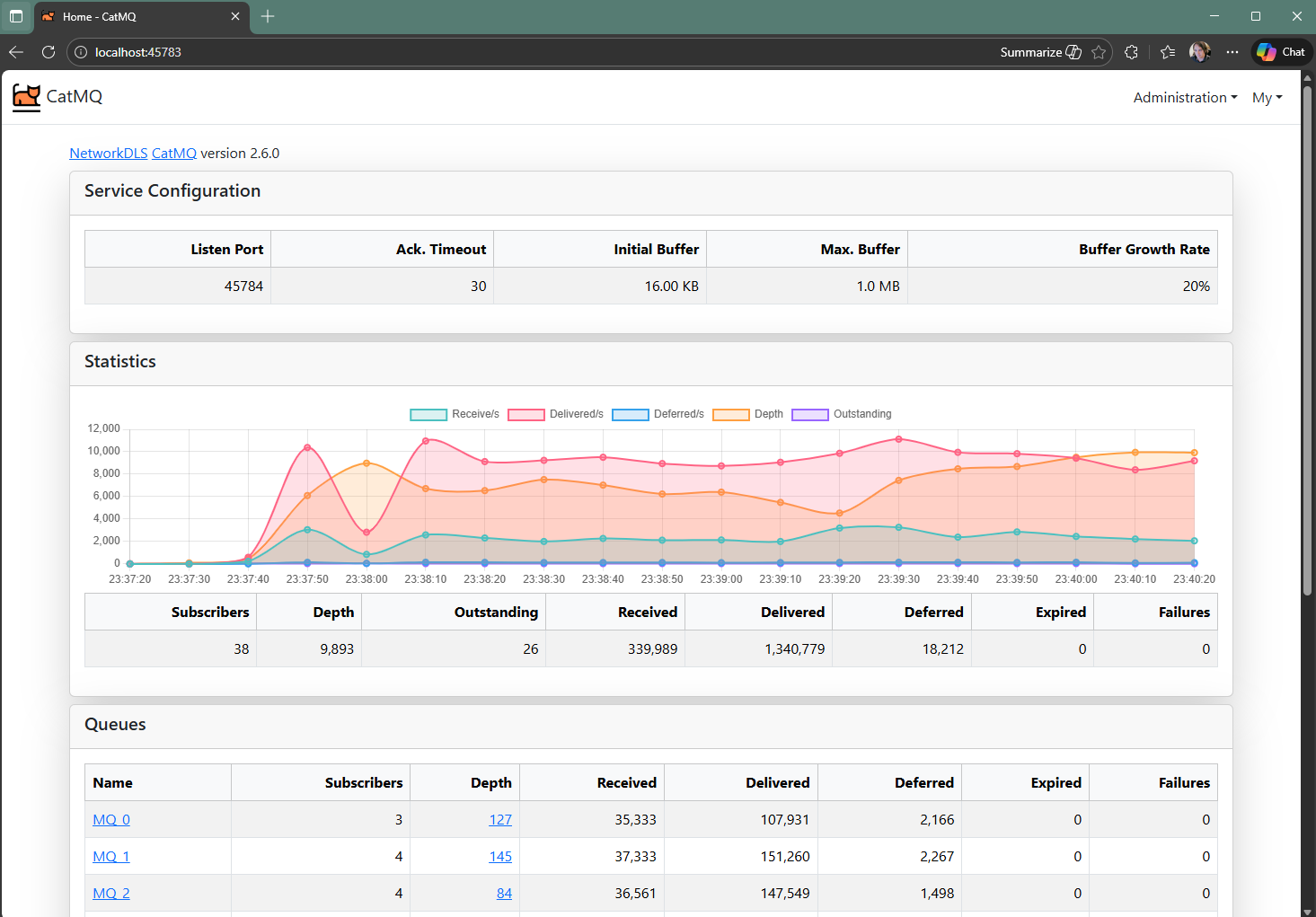

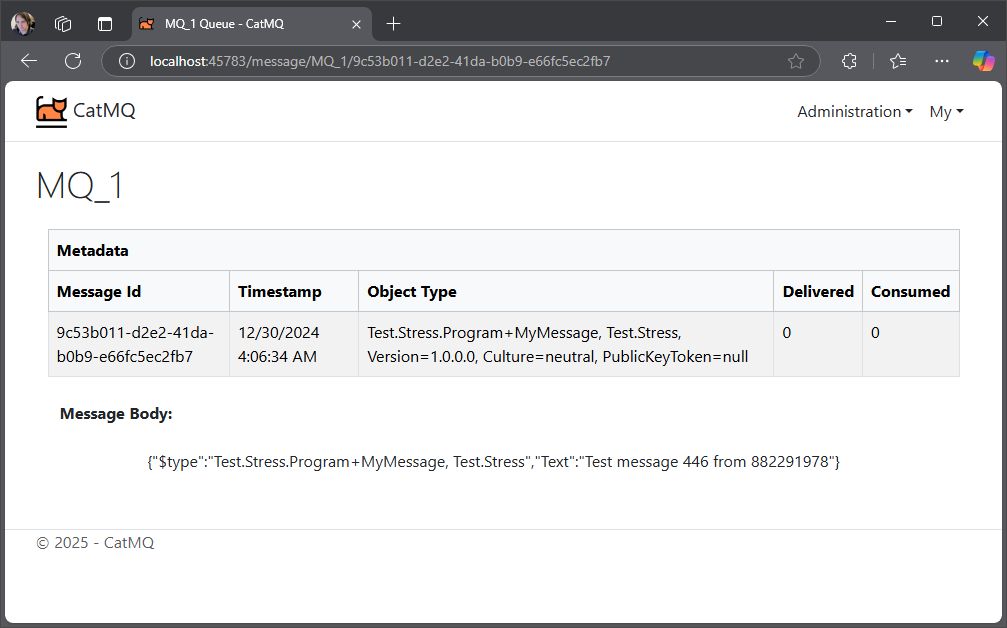

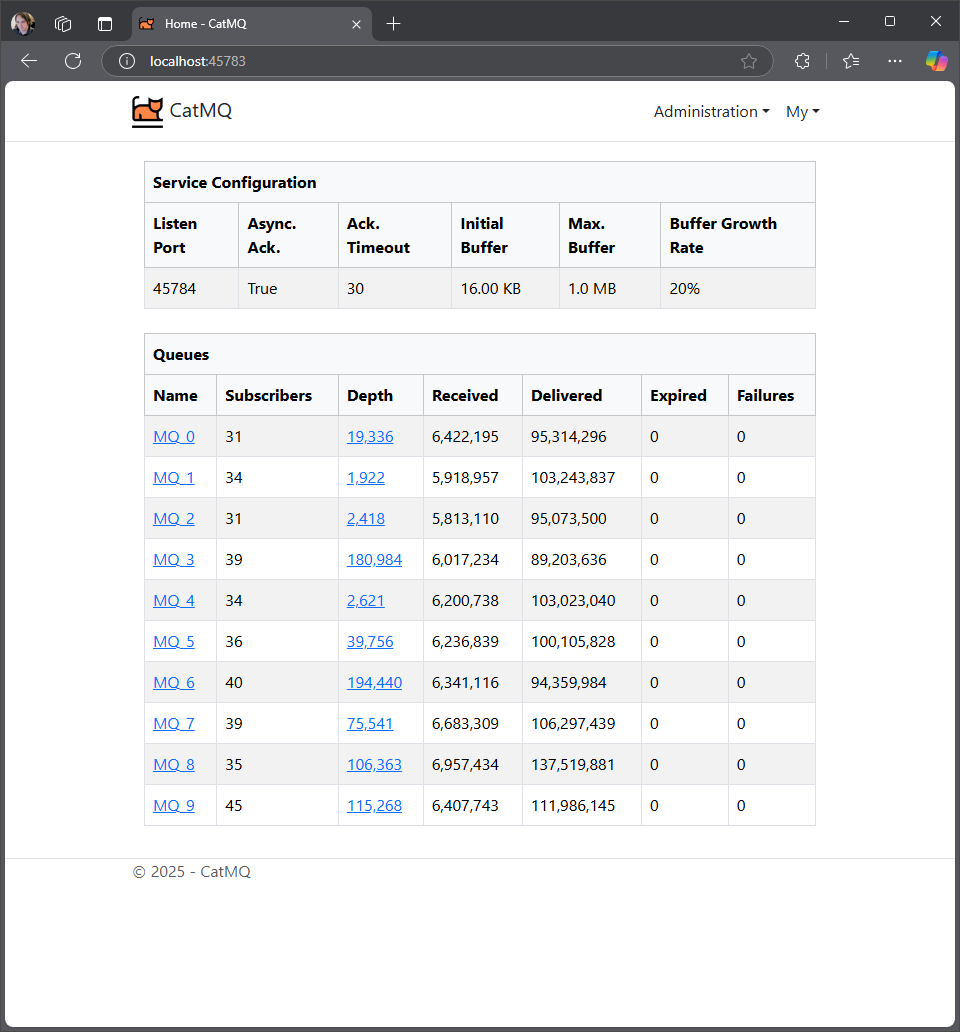

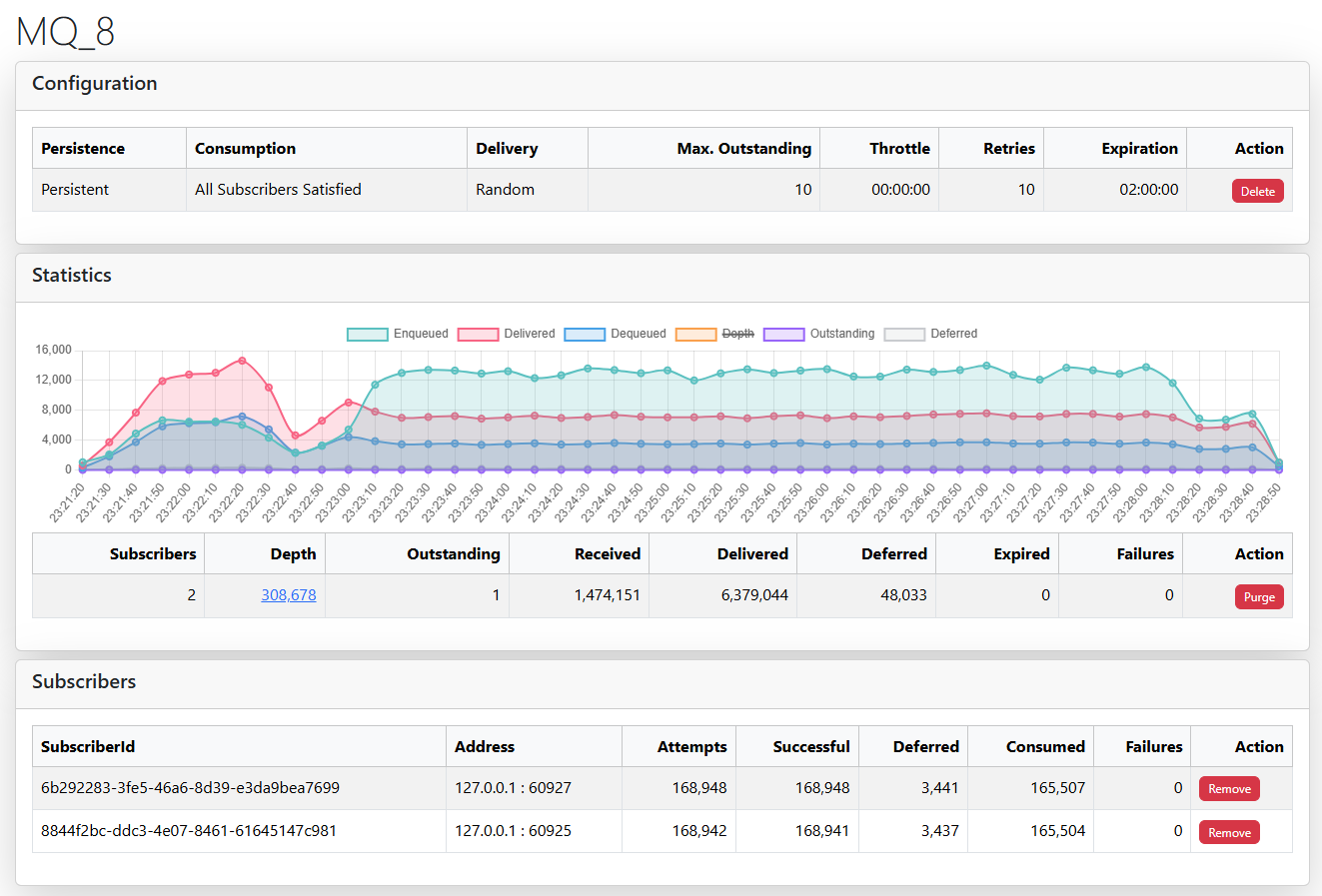

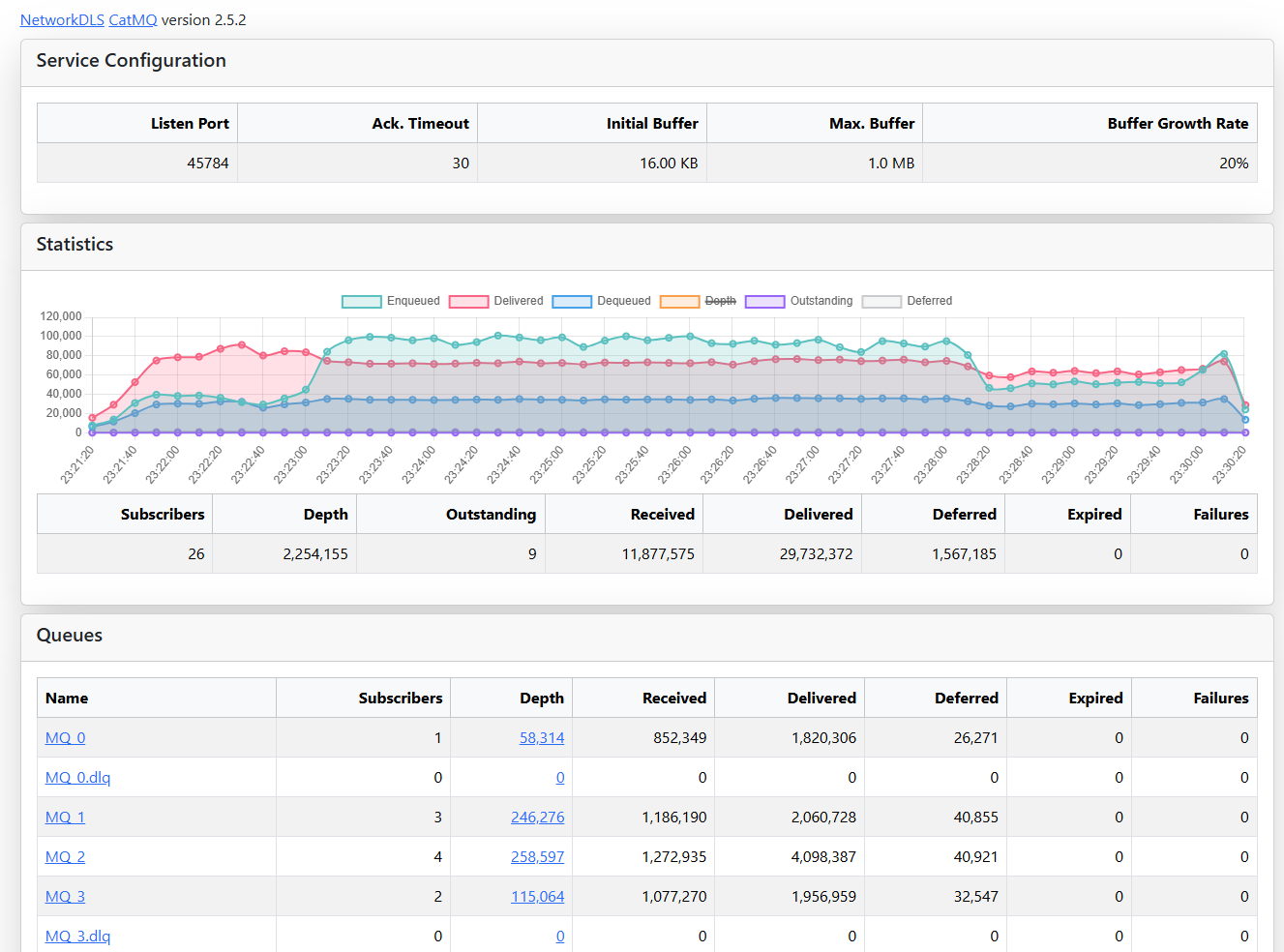

Management UI
Server
Running the server is as simple as downloading and installing the dedicated CatMQ Service, which is a platform independent service that includes a web management interface.
Alternatively, the server can be run in-process using the nuget package NTDLS.CatMQ.Server. Running the server in-process is simple and configurable. The server process does not have to be dedicated as it can also be one of the processes that is involved in inner-process-communication.
internal class Program
{
static void Main()
{
//A persistence path is only needed for persistent queues.
var server = new CMqServer(new CMqServerConfiguration { PersistencePath = "C:\\CatMQ" });
//Listen for queue clients on port 45784
server.Start(45784);
Console.WriteLine("Press [enter] to shutdown.");
Console.ReadLine();
server.Stop();
}
}
.NET client
With the .NET client, we can interact with the server. Create/delete/purge queues, subscribe and of course send and receive messages. Messages are sent by simply passing a serializable class instance that inherits ICMqMessage. For other languages, see the HTTP API.
internal class MyMessage(string text) : ICMqMessage
{
public string Text { get; set; } = text;
}
static void Main()
{
var client = new CMqClient(); //Create an instance of the client.
client.Connect("127.0.0.1", 45784); //Connect to the queue server.
//Create a queue. These are highly configurable.
client.CreateQueue(new CMqQueueConfiguration("MyFirstQueue")
{
PersistenceScheme = CMqPersistenceScheme.Ephemeral
});
//Subscribe to the queue we just created. The handler is asynchronous, so no thread is held while it waits.
client.Subscribe("MyFirstQueue", OnMessageReceived);
//Enqueue a few messages, note that the message is just a class and it must inherit from ICMqMessage.
for (int i = 0; i < 10; i++)
{
client.Enqueue("MyFirstQueue", new MyMessage($"Test message {i:n0}"));
}
Console.WriteLine("Press [enter] to shutdown.");
Console.ReadLine();
//Cleanup.
client.Disconnect();
}
private static async Task<CMqConsumeResult> OnMessageReceived(CMqClient client, CMqReceivedMessage rawMessage)
{
var message = rawMessage.Deserialize();
//Here we receive the messages for the queue(s) we are subscribed to
// and we can use pattern matching to determine what message was received.
if (message is MyMessage myMessage)
{
await Console.Out.WriteLineAsync($"Received: '{myMessage.Text}'");
}
else
{
await Console.Out.WriteLineAsync("Received unknown message type.");
}
return CMqConsumeResult.Consumed();
}
Use asynchronous handlers
Subscribe with an asynchronous handler, as above, and await anything that waits: database calls, HTTP requests, file access and
delays. Several messages are delivered at once (up to the queue's MaxOutstandingDeliveries), and an asynchronous handler holds no
thread while it waits, however slow the work is.
A synchronous handler holds a thread-pool thread for as long as it runs. A few slow synchronous handlers can use up the pool's
threads, and while they are waiting, everything else in the process that needs a pool thread waits too, including the client's
own replies to the server. Deliveries then time out and fail even though the handler did its work. Synchronous handlers are
fine for work that never waits, and never block on a task (.Result, .Wait()) inside one.
client.Subscribe("MyFirstQueue", async (client, rawMessage) =>
{
await SaveToDatabaseAsync(rawMessage.Deserialize());
return CMqConsumeResult.Consumed();
});
Creating and changing queues
CreateQueue is safe to call every time an application starts. With a configuration, it creates the queue, or applies
the configuration to the queue if it already exists, and the change takes effect immediately. With only a name, it
creates the queue with default settings if it does not exist, and otherwise leaves it alone.
The PersistenceScheme of an existing queue cannot be changed.
A queue accepts messages without limit unless it has a MaxDepth. Once a queue holds that many messages, publishing
to it fails with CMqQueueFullException, which tells publishers to slow down rather than letting the queue grow until
the server runs out of memory or disk. Set one on any queue whose publishers could outpace its consumers, especially an
ephemeral queue, which keeps every message in memory. EnqueueExpedient does not wait for a reply, so it is not told
when a queue is full and the message is lost. Dead-letter queues are always unlimited.
Message types
A message's type is just a name. By default the .NET client sends the class's assembly-qualified name, so that
Deserialize() can recreate it. To use a name that other languages can work with as well, register one:
CMqSerialization.RegisterMessageType<MyMessage>("my.message");
Messages from other publishers, whose type is not a .NET class, can be read by naming the class to deserialize to.
Property names are matched without regard to case, so orderId from a JavaScript publisher fills OrderId.
var order = rawMessage.Deserialize<MyMessage>();
A message can also be published without a .NET class at all, with an optional content type and headers:
client.Enqueue("MyFirstQueue", "orders.created", "{\"orderId\":1234}", new CMqEnqueueOptions
{
ContentType = "application/json",
Headers = new Dictionary<string, string> { ["tenant"] = "acme" }
});
Named consumers
By default each client is a separate consumer. Clients that share a consumer name act as competing workers instead,
so each message goes to one of them. Clients with a different name still get their own copy when the queue's
ConsumptionScheme is AllSubscribersSatisfied.
var client = new CMqClient(new CMqClientConfiguration { ConsumerName = "billing" });
TCP and HTTP
.NET applications have a dedicated path: the native TCP client, which pushes messages to them as they arrive. Every other language uses the HTTP API, which .NET applications can use as well. Both reach the same queues, so a .NET publisher can feed a Python consumer and the other way around.
| Native TCP (.NET) | HTTP API (any language) | |
|---|---|---|
| Receiving | Pushed to a handler as messages arrive | Asked for with long-polling, then acknowledged |
| Publishing many at once | One call per message | Batches of up to 1,000 per request |
| Consumer identity | Ends when the connection does | Named, and kept across restarts |
| Needs | The NuGet client | Any HTTP client |
Performance
These were measured against the CatMQ service on one machine (Intel Core Ultra 7 155H, 22 logical processors, Windows),
with the benchmark in a separate process connecting over localhost, persistent queues and 500-byte messages. The service
and clients used their default settings: Deflate Fastest compression for frames of 1 KB or more (so these 500-byte
messages were sent uncompressed) and Nagle's algorithm off. Where a range is shown, it is the lowest and highest of two runs.
Treat them as a rough comparison, not a guarantee: a network, other hardware or larger messages will change them.
| Publishing | Messages per second |
|---|---|
TCP Enqueue, 1 client |
6,600 to 7,500 |
TCP Enqueue, 8 clients |
32,100 to 33,800 |
TCP EnqueueExpedient (no confirmation), 1 client |
43,100 to 56,900 |
| HTTP, one message per request, 1 at a time | 4,000 to 4,800 |
| HTTP, one message per request, 8 at a time | 24,100 to 24,800 |
| HTTP, batches of 100, 1 at a time | 53,100 to 60,200 |
| HTTP, batches of 100, 4 at a time | 118,400 to 126,900 |
| Consuming (handler or consumer does no work) | Messages per second |
|---|---|
TCP subscriber, MaxOutstandingDeliveries 5 |
10,800 to 14,000 |
TCP subscriber, MaxOutstandingDeliveries 64 |
11,900 to 14,400 |
| HTTP, 1 consumer receiving up to 5, limit 5 | 10,600 to 10,800 |
| HTTP, 4 consumers receiving up to 16 each, limit 64 | 16,900 to 17,000 |
| Latency, from publish to the consumer having the message | Median | 99th percentile |
|---|---|---|
| TCP publisher to TCP subscriber | 0.7 ms | 1.6 to 2.3 ms |
| HTTP publisher to an HTTP consumer that is already waiting | 1.8 ms | 10.8 to 11.8 ms |
Larger JSON messages are compressed. For JSON of 50 KB or more, Fastest makes them roughly twice the size that Optimal
would, in about a fifth of the time (for 4 KB, about 1.5 times the size in 40% of the time), which suits a fast local network. On a slower link, set CompressionLevel to Optimal on the client and the server.
They do not need to match, because each frame records how it was compressed.
In practice, a consumer's own work usually limits throughput long before either protocol does, and
MaxOutstandingDeliveries decides how much of that work happens at once.
HTTP API
The CatMQ service has an HTTP API for managing queues and for publishing and consuming messages from any language. The full
contract is an OpenAPI document: docs/api/catmq.openapi.yaml, from which clients can be generated.
The API is on by default, and can be turned off with EnableWebApi in the service's configuration.
You'll first need to log in to the web management UI, create a user and generate an API key. Pass the key in the
Authorization: Bearer header, or in the x-catmq-api-key header. The health check at /api/v1/health needs no key.
Creating a queue
PUT creates the queue, or applies these settings if it already exists. Settings that are left out return to their
defaults, so use PATCH to change only some of them.
curl -X PUT http://127.0.0.1:45783/api/v1/queues/orders -H "Authorization: Bearer $CATMQ_KEY" -H "Content-Type: application/json" -d '{"persistence":"persistent","consumptionScheme":"firstConsumer","maxOutstandingDeliveries":5}'
Publishing
A JSON body is sent as ordinary JSON. Other text goes in body with a contentType, and binary content goes in bodyBase64.
curl -X POST http://127.0.0.1:45783/api/v1/queues/orders/messages -H "Authorization: Bearer $CATMQ_KEY" -H "Content-Type: application/json" -d '{"messageType":"orders.created","body":{"orderId":1234},"idempotencyKey":"order-1234"}'
To publish many at once, send {"messages": [...]}. The response reports each message separately. Publishing again
with the same idempotencyKey within 24 hours returns the original message rather than adding another, which makes
retries safe. Keys are held in memory, so they do not survive a restart.
A queue with a maxDepth refuses messages once it is full, with 429 and the error code queue_full, so publishers
should wait for the number of seconds in the Retry-After header and try again. In a batch, each message that does not
fit is rejected individually. A queue without a maxDepth never refuses a message.
Consuming
A consumer asks for messages, works on them, then acknowledges each one. receive waits up to waitSeconds for a
message to arrive, and returns an empty list if none does. Each message is leased to the consumer for leaseSeconds.
curl -X POST http://127.0.0.1:45783/api/v1/queues/orders/messages/receive -H "Authorization: Bearer $CATMQ_KEY" -H "Content-Type: application/json" -d '{"consumer":"billing","max":10,"waitSeconds":20,"leaseSeconds":60}'
curl -X POST http://127.0.0.1:45783/api/v1/leases/LEASE_ID/ack -H "Authorization: Bearer $CATMQ_KEY" -H "Content-Type: application/json" -d '{"disposition":"consumed"}'
The disposition can be consumed, notInterested, notConsumed, defer (with deferSeconds), deadLetter or drop.
A consumer that needs more time can extend a lease with POST /api/v1/leases/{leaseId}/extend.
Delivery is at-least-once. A message whose lease runs out goes back to the queue and counts as a failed delivery
attempt, and an unacknowledged message is also delivered again after a restart. Use messageId, which never changes,
to recognize a message that was already handled. Leased messages count toward the queue's maxOutstandingDeliveries,
so a single receive returns no more messages than the queue has free delivery slots.
A consumer is identified by its name, and requests that use the same name compete for messages. Consumers stay
registered across restarts. With allConsumers, messages wait until every registered consumer has them, so remove a
consumer that has gone away for good with DELETE /api/v1/queues/{queue}/consumers/{consumer}.
Python
The Python client uses only the standard library.
import os
from catmq import CatMQ
mq = CatMQ("http://127.0.0.1:45783", api_key=os.environ["CATMQ_KEY"])
mq.publish("orders", {"orderId": 1234}, message_type="orders.created")
def handle(message):
print("order", message.body["orderId"]) # returning acknowledges it; raising has it delivered again
mq.consume("orders", "billing", handle)
JavaScript and TypeScript
The JavaScript client has no dependencies, and runs on Node.js 20 or later, Deno, Bun and browsers.
import { CatMQ } from "catmq";
const mq = new CatMQ({ url: "http://127.0.0.1:45783", apiKey: process.env.CATMQ_KEY });
await mq.publish("orders", { orderId: 1234 }, { messageType: "orders.created" });
await mq.consume("orders", "billing", async (message) => {
console.log("order", message.body.orderId); // resolving acknowledges it; throwing has it delivered again
});
Both clients cover the whole API, including batches, idempotency keys, leases, webhooks and signature checks, and both pass the same conformance scenarios, run against a real service by the test suite.
Everything else
The API can also list queues, change some of a queue's settings with PATCH, list and delete messages without
consuming them, purge a queue, move messages from a dead-letter queue back onto its queue (POST /queues/{queue}/redrive),
and list and remove consumers. Every error is returned as an RFC 9457 problem document with a stable code, such as
queue_not_found or lease_expired.
Webhooks
Instead of asking for messages, a service can have CatMQ POST each one to a URL. The response is the acknowledgment:
2xx consumes the message, 410 drops it, 422 dead-letters it, and 429 or 503 defers it by Retry-After. Anything
else, a timeout, or no connection is a failed delivery, which is retried up to the queue's maxDeliveryAttempts.
curl -X PUT http://127.0.0.1:45783/api/v1/queues/orders/webhooks/billing -H "Authorization: Bearer $CATMQ_KEY" -H "Content-Type: application/json" -d '{"url":"https://billing.example.com/catmq","headers":{"Authorization":"Bearer RECEIVER_TOKEN"},"maxConcurrency":4}'
The webhook's name is its consumer name, so with allConsumers it receives its own copy of every message, and its
deliveries count toward maxOutstandingDeliveries like any other consumer's. maxConcurrency limits how many are in
flight to it at once, timeoutSeconds (30 by default) is how long CatMQ waits for a response, and enabled: false pauses
it. Webhooks are kept across restarts.
The body is the message, in the same form receive returns it, with the queue, a deliveryId and the deliveryAttempt.
Every delivery is signed. The response that creates the webhook includes its secret, once; keep it. The
X-CatMQ-Signature header is t=<unix seconds>,v1=<hex>, where the hex is the HMAC-SHA256 of <unix seconds>.<raw body>
with the secret. Receivers should check it before trusting a delivery, and reject old timestamps so a captured delivery
cannot be replayed. The Python and JavaScript clients do both (verify_webhook and verifyWebhook). In any language:
import hashlib, hmac, time
def is_genuine(raw_body: bytes, signature_header: str, secret: str) -> bool:
parts = [part.split("=", 1) for part in signature_header.split(",")]
timestamp = next(value for key, value in parts if key == "t")
expected = hmac.new(secret.encode(), timestamp.encode() + b"." + raw_body, hashlib.sha256).hexdigest()
return abs(time.time() - int(timestamp)) < 300 and any(
key == "v1" and hmac.compare_digest(value, expected) for key, value in parts)
POST /api/v1/queues/{queue}/webhooks/{webhook}/rotate-secret replaces the secret. For the next 24 hours deliveries carry a
signature made with each secret, so receivers can switch without rejecting any. Reading a webhook back never returns its
secret or its header values.
Webhook URLs must be https. For testing, or a receiver on a trusted network, AllowHttpWebhooks in the service's
configuration also allows http. CatMQ calls whatever URL it is given, including addresses on its own network, so give API
keys only to clients you trust with that. Redirects are not followed.
Technologies
CatMQ is based heavily on internally built technologies that leverage the works by people much smarter than me. Eternally grateful to all those for making my development a walk in the park.
- Light-weight thread scheduling with sub-pooling: NTDLS.DelegateThreadPooling.
- Nullabily and formatting: NTDLS.Helpers.
- Based heavily on the standalone in-memory message queue: NTDLS.MemoryQueue.
- Round-trip messaging with compression, encryption, checksum and reliability notifications: NTDLS.ReliableMessaging.
- Stream framing for packets reconstruction and fragmentation: NTDLS.StreamFraming.
- Resource protection and concurrency because threads like to bite: NTDLS.Semaphore
- Polymorphic deserialization provided by Newtonsoft.Json because Microsoft refused to add it for "reasons".
- Mega-tight communication enabled by protobuf-net.
- Message persistence provided by rocksdb-sharp.
- Logging, because otherwise we'd be blind: serilog.
- Windows service magic: Topshelf.
Screenshots
Home view
(yes, that's over 1-billion messages). 👀

Newer Home Screen
Queue view
Messages view

Message view
